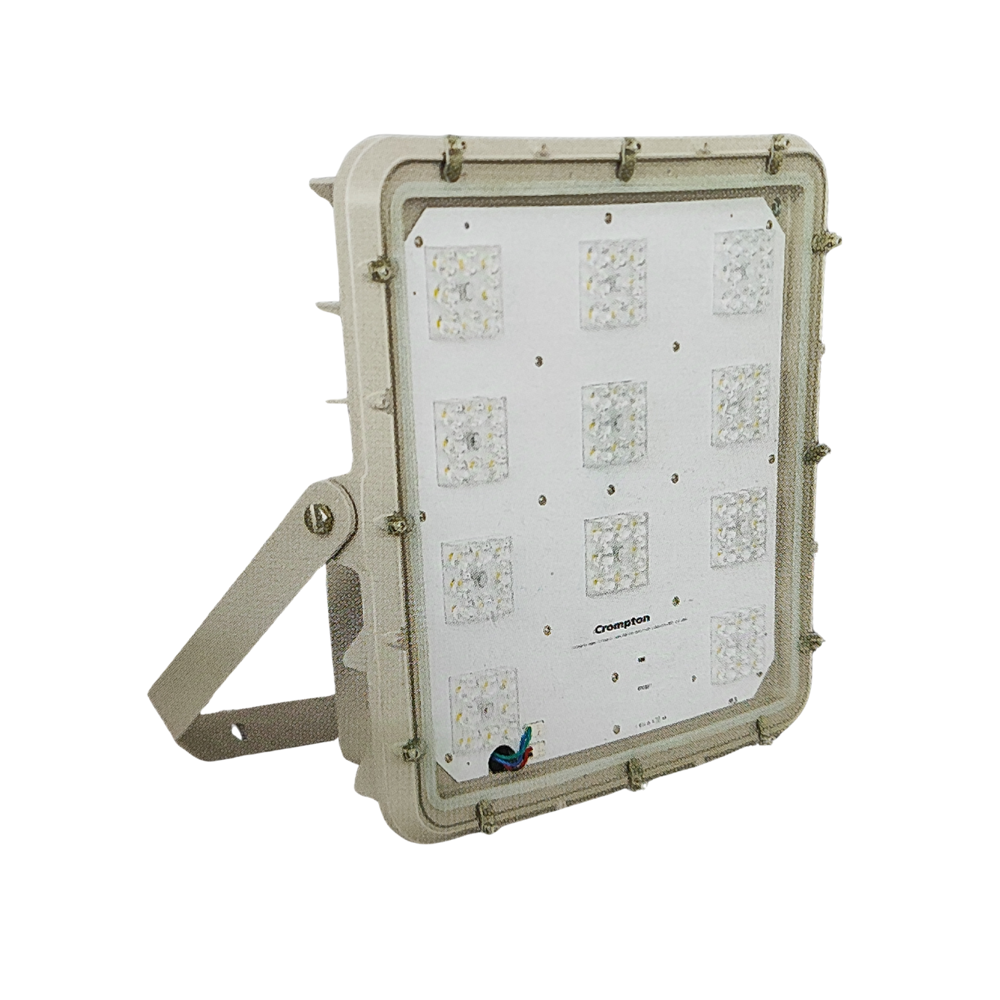

400w Crompton High Mast Light 5 Years Warranty Led Flood Light CFS-512-400-57-60D-SL-GL-NSG

Product Description

Crompton's 400W LED Flood Light model CFS-512-400-57-60D-SL-GL-NSG is a high-efficiency outdoor lighting solution designed for area lighting, faade lighting, monument illumination, and security lighting applications. The luminaire is housed in a durable pressure die-cast aluminium body with a powder-coated finish and features a separate control gear compartment for easy maintenance. Its robust design, IP66 rating, and superior thermal management ensure long-lasting performance in all weather conditions.

• Model: CFS-512-400-57-60D-SL-GL-NSG

• Wattage: 400 Watts

• Color Temperature: 5700K

• Luminous Efficacy: 110 Lumens per Watt

• CRI: Minimum 70

• Input Voltage: 240 Volts

• Voltage Operating Range: 120 to 270 Volts

• Power Factor: Greater than 0.95

• Current at 240V: 1.75 Amps

• THD: Less than 10 percent

• Frequency: 50 Hz 3

• Weight: Approx. 11.1 kg

• Housing: Pressure Die Cast Aluminium, powder coated (Grey RAL 7032)

• Driver Housing: Pressure Die Cast Aluminium, powder coated (Grey RAL 7032)

• Glass: Heat resistant toughened glass

• Internal Wiring: Multistrand wire with PVC coating

• Mains Terminal: 3-way, 10 Amps, suitable for up to 2.5 sq mm cable

• Earthing: Suitable for 14 SWG wire

• Inbuilt Driver Surge Protection: 4 KV

• External Surge Protection Inside Housing: 10 KV

• Mounting System: Cradle with 2 holes of 14 mm diameter and 1 hole of 22 mm diameter

• Cable Entry: Through cable gland

• Maintenance: Removable control gear cover for easy servicing

• Ingress Protection: IP66 rated for outdoor use

• Product Code: CLF501240-A2

• Spare Driver: 2 units of 200W or 220W at 700mA

• Spare Glass: S0906214

• Spare Surge Arrester: 10KV, 440V
