300W LED Flood Light CFS-506-300-57-60D-SL-GL-NSG Make Crompton

About 300W LED Flood Light CFS-506-300-57-60D-SL-GL-NSG Make Crompton

LED floodlight made up of pressure die cast aluminium housing with toughened glass and high power LEDs and secondary lenses with IP66 protection. System efficacy 110/LPW 10KV SPD included.

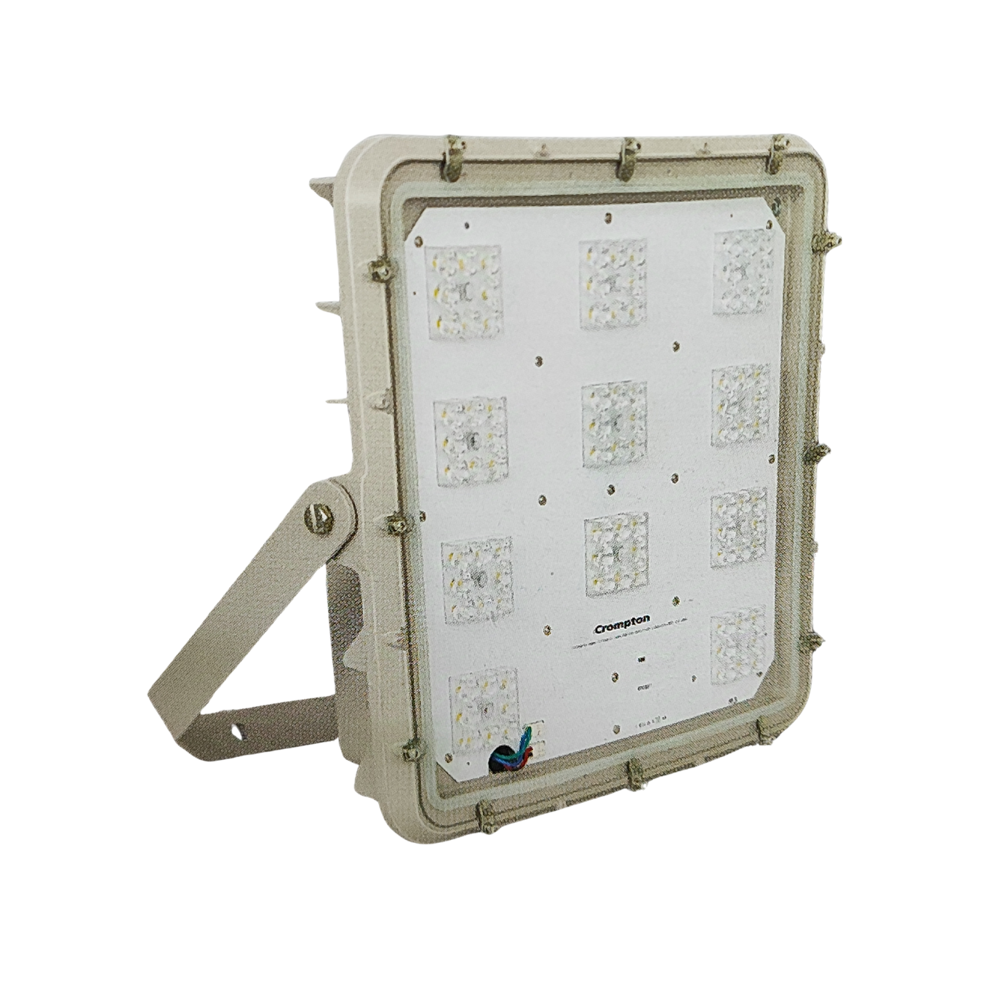

Crompton LED 300W Flood Light (CFS-506-300-57-60D-SL-GL-NSG)

This 300W LED Flood Light from Crompton Greaves is a robust and efficient lighting solution designed for area lighting, facade lighting, monument lighting, and security lighting. The luminaire features a stylish and durable PDC (Pressure Die Cast) aluminum housing with a grey powder-coated finish (RAL-7032), ensuring excellent heat dissipation and long-lasting performance.

The light is equipped with heat-resistant toughened glass, enhancing its durability and reliability in outdoor environments. The integrated fins on the housing offer superior heat dissipation, making it ideal for heavy-duty applications.

Technical Specifications:

Model: CFS-506-300-57-60D-SL-GL-NSG
Nominal Wattage: 300W
Efficacy: 110 LPW
Color Temperature (CCT): 5700K (ANSI)
Color Rendering Index (CRI): 70
Input Voltage: 240V AC
Operating Voltage Range: 120 - 270V
Frequency: 50 Hz 3
Power Factor (P.F.):  0.95
Total Harmonic Distortion (THD): < 10%
Mains Current: 1.3A @ 240V
Approximate Weight: 8.05 Kg

Material Specifications:

• Housing: Die-cast aluminum powder-coated in Grey RAL-7032
• Driver Housing: Die-cast aluminum powder-coated in Grey RAL-7032
• Internal Wiring: PVC-coated multistrand wire
• Mains Terminal: 1 no. 3-way terminal, suitable for terminating a maximum 2.5 sq. mm incoming cable
• Earthing: Suitable for 14 SWG earthing wire

Electrical Protection:

• Surge Protection: 4KV Inbuilt in driver and 10KV external inside housing

Installation Details:

• Cable Entry: Through cable gland
• Mounting System: Cradle with 2 Nos. 14x25mm slot & 1 No. 20mm hole provided for mounting
• Maintenance: Control gear cover is removable for easy maintenance
• Ingress Protection (IP Rating): IP66

Product Ordering Code:

• Product Description: CFS-506-300-57-60D-SL-GL-NSG
• Ordering Code: CLF500800-A2

Spares Ordering Reference:

• Driver: 2 Nos 150W@700mA
• Glass: S0906066
• Surge Protection: 10KV 440V

This high-quality LED floodlight is designed for optimum performance and durability, making it an ideal choice for various outdoor and industrial lighting applications.
