Crompton 80W LED Canopy Light LCNP-80-CDl/60-M Neptune Neo

Name: Crompton 80W LED Canopy Light LCNP-80-CDl/60-M Neptune Neo
Brand: M.H.Electrical
Price: 2799.00 INR
Availability: InStock

Price 2799.00 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

Crompton 80W LED Canopy Light LCNP-80-CDl/60-M Neptune Neo Specification

Product Type
Canopy Light

Power Rating
80W

Material
Die cast Aluminium powder coated in White

Power Supply
Electric

Voltage
240 Volt (v)

Input Voltage
240 Volt (V)

Warranty
5 Year

IP Rating
IP66

Rated Frequency
50 Hertz (HZ)

Usage & Applications
Petrol Pump

Color
White

Rated Voltage
240V Volt (V)

Weight
3 Kilograms (kg)

Dimension (L*W*H)
Inch (in)

Phase
Single Ph

Frequency
50 / 60 Hertz (HZ)

Crompton 80W LED Canopy Light LCNP-80-CDl/60-M Neptune Neo Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash Advance (CA), Cheque

Supply Ability
1000 Pieces Per Month

Delivery Time
1 Days

Main Domestic Market
All India

Certifications
BIS IP66

About Crompton 80W LED Canopy Light LCNP-80-CDl/60-M Neptune Neo

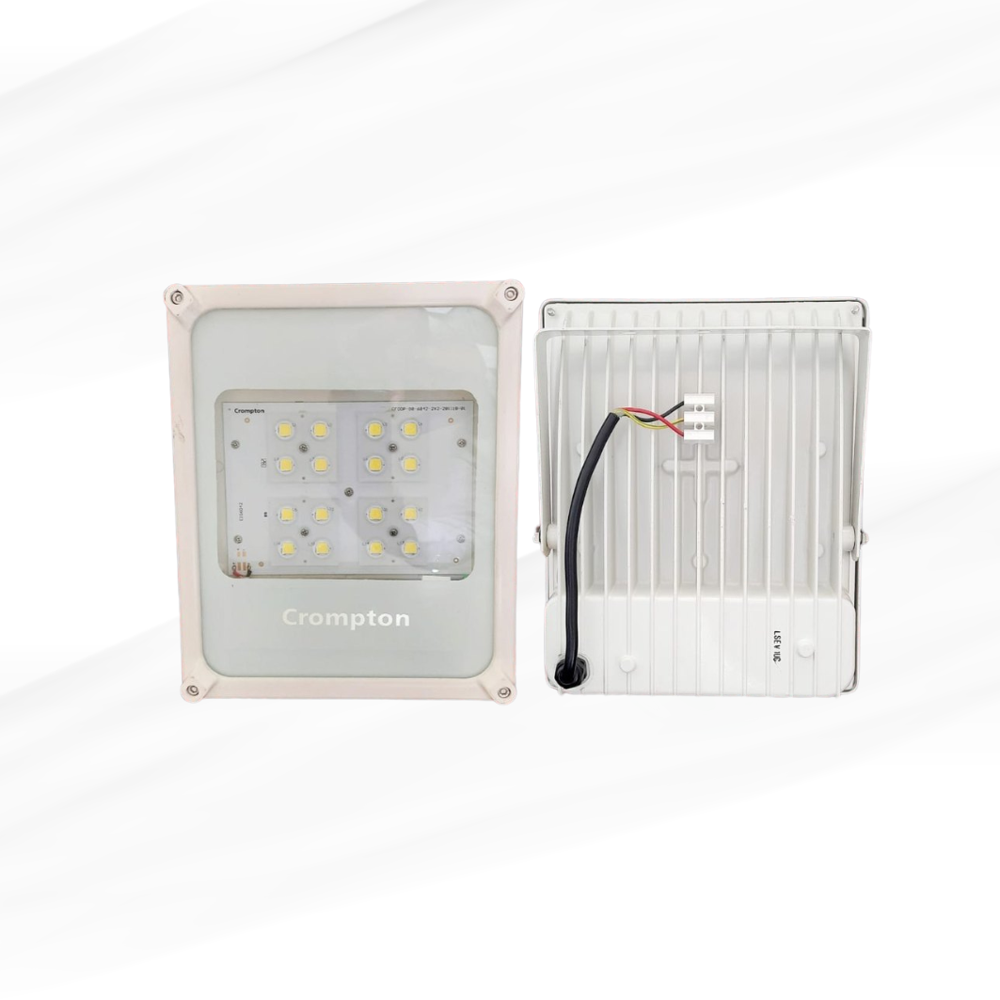

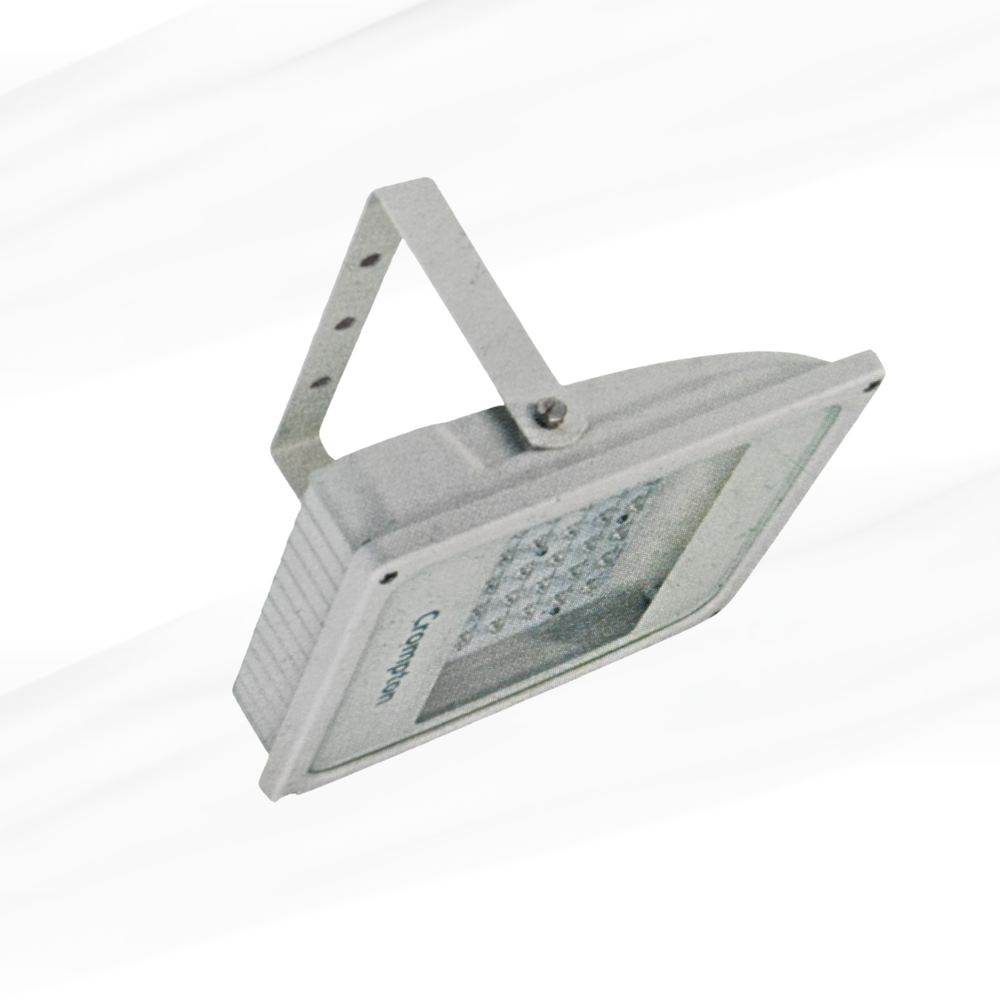

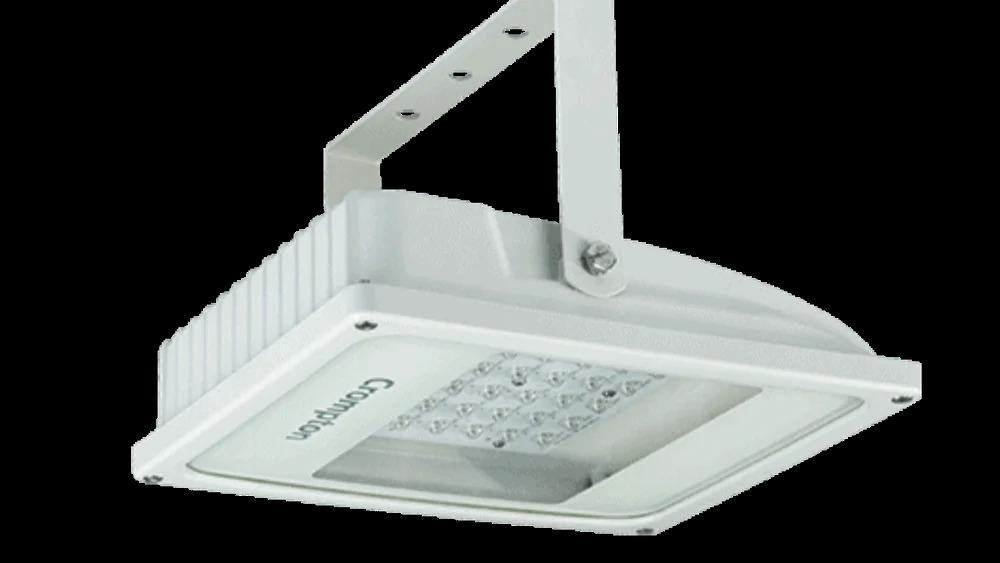

Crompton Neptune Neo LCNP-80-CDL/60-M LED Canopy Light delivers 80W power with 240V AC input, 5700K cool daylight color temperature, and high power factor above 0.95. IP66 rated with die-cast aluminium body, toughened glass cover, 5KV surge protection, suitable for 5 to 8 meters mounting height. Features PG11 cable entry, 3-way 10A terminal block, and cut-out size 275x225mm. Ideal for petrol pumps, industrial canopies, and commercial outdoor spaces.

LED Canopy Light LCNP-80-CDL/60-M (Neptune Neo) by Crompton

Wattage: 80W
Rated Voltage: 240V AC, 50Hz
Operating Voltage Range: 120V - 270V AC
Current: 0.330A @ 240V
Power Factor: 0.95
CCT (Color Temperature): 5700K (Cool Daylight)
Lumen Output: High-efficiency LED (exact lumen output not specified)
Housing: Die-cast Aluminium, White powder coated
Frame: Die-cast Aluminium, White powder coated
Optical Cover: Toughened Glass
Protection: IP66 Rated (Dust & Water resistant)
Surge Protection: 5KV Surge Arrestor
Mounting: Cradle with 3 Nos. 12.5mm holes for suspension
Cable Entry: PG11 Cable Gland
Internal Wiring: 19/30 multistrand Teflon coated wire
Terminal Block: 3-way, 10A, suitable for max. 2.5 sq mm cable
Earthing: Suitable for 14 SWG wire
Maintenance: Removable glass cover for easy access
Recommended Mounting Height: 5 to 8 meters
Approximate Weight: 3 kg
Cut-out Size: 275mm x 225mm

Reliable Performance in Every Environment

With an IP66 rating, this LED canopy light offers outstanding protection against dust and water. It is tailor-made for use in petrol pumps and other demanding environments, ensuring uninterrupted performance and longevity regardless of weather conditions.

Energy-Efficient Illumination

Rated at 80W, the Neptune Neo provides bright and uniform lighting while maintaining low energy consumption. It is ideal for businesses looking to optimize illumination without escalating power bills. The efficient design also contributes to its longer service life.

Built for Longevity and Durability

Constructed from die-cast aluminium and finished with a white powder coating, this canopy light resists wear and corrosion. Backed by up to a 5-year warranty, it offers lasting reliability, reducing the need for frequent replacements and maintenance.

FAQ's of Crompton 80W LED Canopy Light LCNP-80-CDl/60-M Neptune Neo:

Q: How is the Crompton 80W LED Canopy Light installed and what power supply does it require?

A: The Crompton 80W LED Canopy Light is designed for simple installation using a standard single-phase, 240V electric power supply. Its user-friendly features make the setup process straightforward for electricians or maintenance personnel.

Q: What types of locations are best suited for using this canopy light?

A: This canopy light is specifically engineered for petrol pumps but is also ideal for other commercial spaces, including distributors, manufacturers, suppliers, and traders who require dependable and bright illumination.

Q: When should I consider replacing or servicing the canopy light?

A: Routine maintenance is minimal due to the durable design and long lifespan of the LED. However, you should consider servicing if you notice decreased brightness or visible damage. The product carries a warranty of up to 5 years for added peace of mind.

Q: Where is this product typically used, and is it suitable for outdoor conditions?

A: The Crompton LED Canopy Light is typically installed in petrol pumps and similar high-exposure environments throughout India. Its IP66 rating ensures it performs reliably outdoors, regardless of exposure to dust or heavy rainfall.

Q: What are the main benefits of choosing this model over other lighting solutions?

A: This model offers superior durability, energy efficiency, and weather resistance. Its die-cast aluminium body and high IP rating ensure long-term performance with minimal maintenance, resulting in reduced operational costs.

Q: How does the warranty coverage work for this canopy light?

A: Depending on the specific model variant, the canopy light comes with either a 1-year or 5-year warranty. This covers manufacturing defects and certain performance issues, offering users confidence in their investment.
