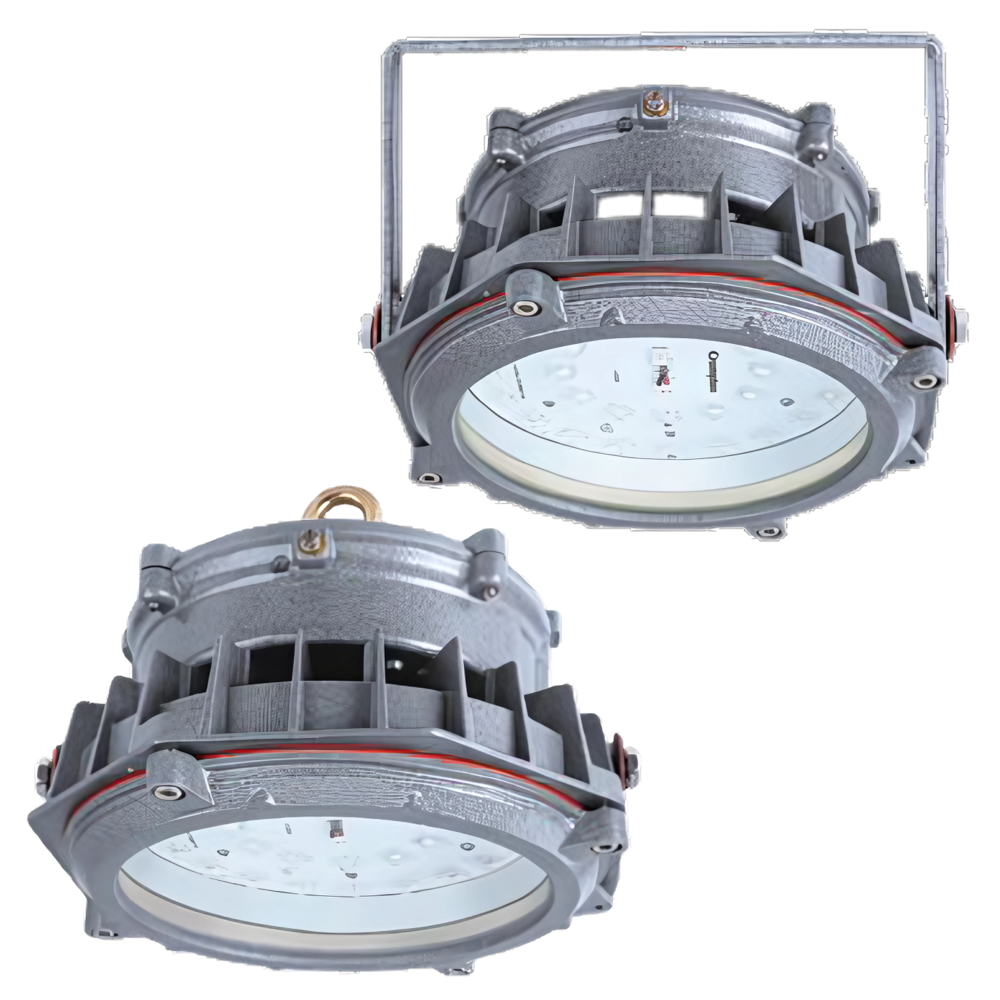

100W FLAMEPROOF FLOOD LIGHT FFL1315-100-CDL 60-M Make-Crompton PESO CIMFR BIS CERTIFIED

Product Description

Flameproof fixtures are designed to ensure that internal ignition within a flammable atmosphere will not transmit outside the protective enclosure. Cromptons flameproof luminaires are ideal for Industrial applications. CIMFR - BIS - PESO Certified. Recommended for Gas Group IIC, Zone 1 and 2. Temperature Class T6

Product Name: LED FLP 100W, FFL1315-100-CDL-60-M

Brand: Crompton Greaves Consumer Electricals Ltd.

Key Specifications

• Nominal Wattage: 100W
• CCT (Color Temperature): 5700K
• CRI (Color Rendering Index): 70
• Voltage: 240V AC
• Frequency: 50 Hz 3%
• Operating Voltage Range: 120V - 277V
• Power Factor (P.F.): >0.95
• Current (A) @ 240V: 0.438A
• Wattage Tolerance: As per IS 16104:2012
• Luminous Efficacy: >100 Lumens/Watt

Material Specifications

• LED Housing: Die-cast aluminum with hammertone graphite grey finish.
• Ring: Die-cast aluminum, same finish as housing.
• Glass: Toughened, heat-resistant flat glass.
• Hardware: Stainless Steel (SS).
• Internal Wiring: PVC-coated multistrand cable.
• Earthing:
  • 1 internal screw.
  • 2 external screws (M6x12mm) with washers.

Key Features

• Flameproof: Designed for hazardous environments (Gas Groups IIA, IIB & IIC).
• Certification: Conforms to IS/IEC 60079-1:2014; CIMFR Certificate No. IN/CIMFR/TR21/P/2165.
• Degree of Protection: EX d and IP66.
• Surge Arrestor: 10 kV protection.
• Mounting System: Supplied with an eye bolt for easy installation.

Dimensions and Weight

• Weight: Approx. 6.8 kg.
• Installation Dimensions: 3 mm tolerance.

Cable and Terminals

• Cable Entry:
  • 1 hole with M20x1.5 threads.
  • Temporary PVC plug provided.
• Mains Terminal: 3-way terminal suitable for a max. 2.5 sq mm incoming cable.

Spare Parts and Ordering Details

• Driver: 2 NOS S0DVEL-65-700-45W.
• Surge Arrestor: SRPSQ-10KV-5KA-440V or SRPSEX-10KV-440V.
• Glass with Ring: FPGL02-IIC.

Ordering Code: LI301910-A2
Cable Gland (sold separately): FG001
