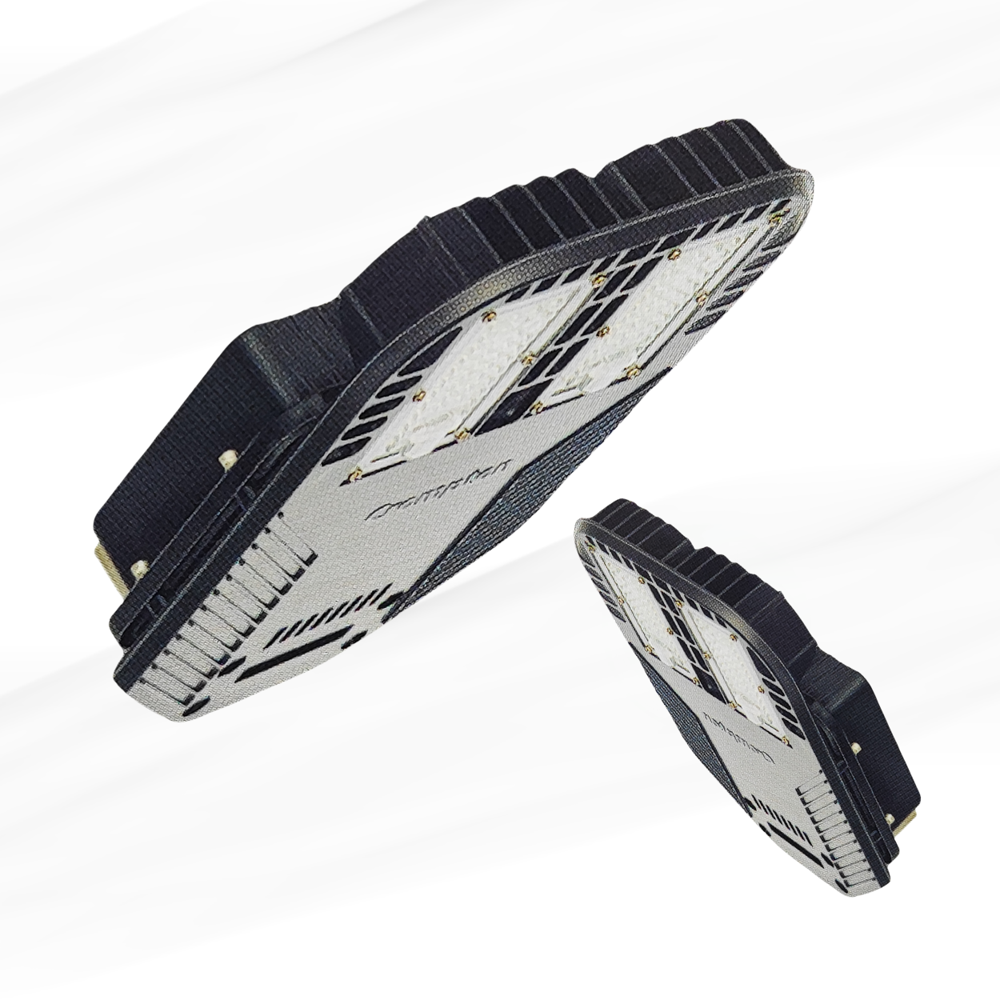

5 Years Warranty 90W LED Street Light CRP-425-90-57-HL2-LM-NSG Make Crompton

Product Description

Upgrade your street lighting with the Crompton 90W LED Street Light, engineered for high efficiency and long-term performance. Built with a robust die-cast aluminium housing and IP66-rated lens module, this luminaire delivers superior illumination for access roads, traffic routes, and public areas. Designed for durability and energy savings, it offers high luminous efficacy and low maintenance operation. Ideal for municipal and industrial outdoor lighting applications.

General:

• Model: CRP-425-90-57-HL2-LM-NSG

• Type: LED Street Light

• Application: Street lighting, access roads, traffic routes

• Mounting Compatibility: Suitable for 3550 mm mounting pipe

Electrical Parameters:

• Rated Wattage: 90W

• Rated Voltage: 240V AC

• Operating Voltage Range: 120V 270V AC

• Frequency: 50Hz 3

• Power Factor: > 0.95

• Input Current @240V: 0.395A

• Total Harmonic Distortion (THD): < 10%

• Efficacy: 120 lumens per watt

Optical Parameters:

• Color Temperature (CCT): 5700K (Cool White)

• Color Rendering Index (CRI): 70

Mechanical & Material:

• Housing: Die-cast Aluminium, Grey RAL-7032 Powder Coated

• Lens Module: UV-stabilized Polycarbonate

• Ingress Protection: IP66

• Weight: Approx. 1.80 kg

Surge Protection:

• Internal: 4kV inbuilt driver protection

• External: 10kV protection included in housing

Cable and Wiring:

• Internal Wiring: PVC-coated multi-strand wires

• Cable: 3-core, PVC-coated multi-strand

Installation:

• Cable Entry: Through mounting pipe

• Mounting System: Pole mount with compatible diameter

Spare Parts Reference:

• Driver: S0DVEXC3-45W-700 (2 Nos. of 45W @ 700mA)

• Surge Arrestor: 10kV, 440V

Product Ordering Code:

• Code: CLR401091-A2
