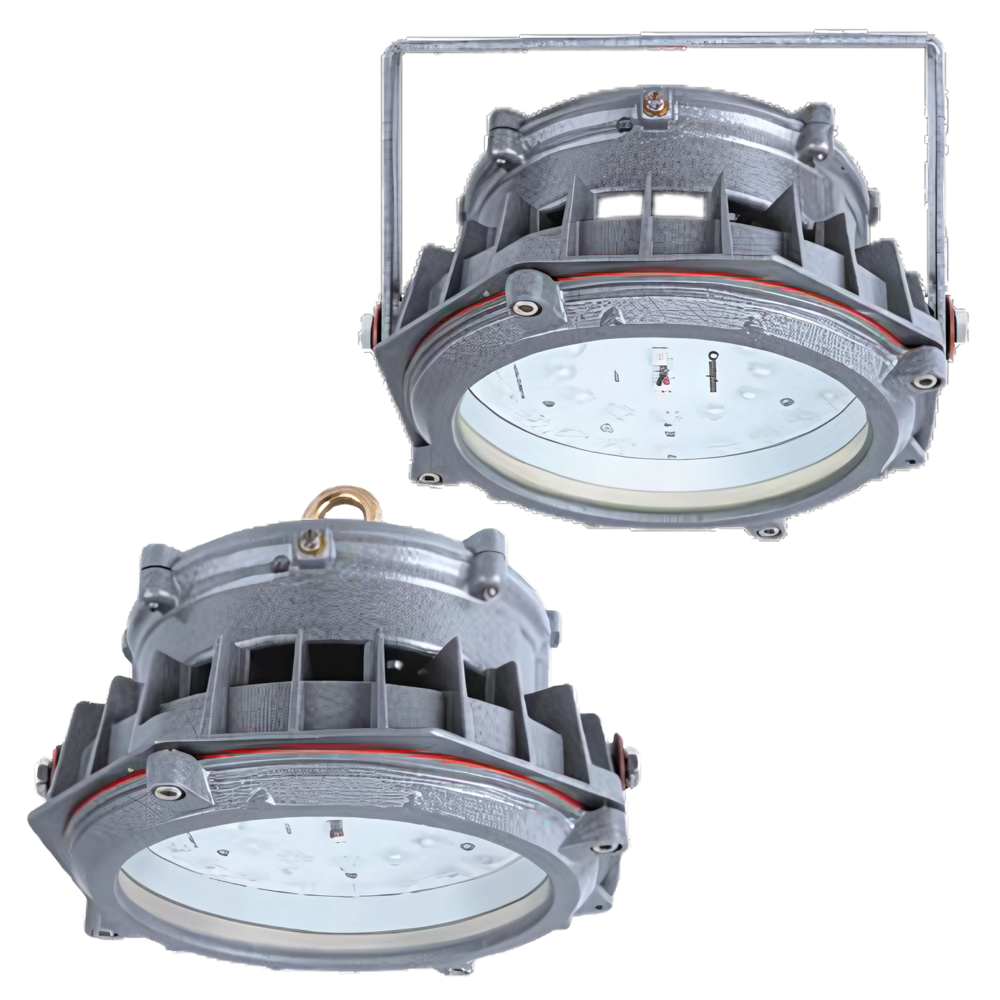

80w Flameproof LED Highbay FFL 1315-80-CDL-HB-M Make Crompton CIMFR BIS Certified

About 80w Flameproof LED Highbay FFL 1315-80-CDL-HB-M Make Crompton CIMFR BIS Certified

LED FLP Highbay 80W, FFL1315 Series
Brand: Crompton Greaves Consumer Electricals Ltd.

• Nominal Wattage: 80W
• CCT (Color Temperature): 5700K
• CRI (Color Rendering Index): 70
• Voltage: 240V AC
• Frequency: 50 Hz 3%
• Operating Voltage Range: 120V - 277V
• Power Factor (P.F.): >0.95
• Current @ 240V: 0.35A
• Wattage Tolerance: As per IS 16104:2012
• Luminous Efficacy: >100 Lumens/Watt

• LED Housing: Die-cast aluminum with hammertone graphite grey finish
• Ring: Die-cast aluminum, same finish as housing
• Glass: Toughened, heat-resistant flat glass
• Hardware: Stainless Steel (SS)
• Internal Wiring: PVC-coated multistrand cable
• Earthing: 1 internal screw, 2 external screws (M6x12mm) with washers

• Flameproof: Suitable for hazardous areas (Gas Groups IIA, IIB & IIC)
• Certification: Conforms to IS/IEC 60079-1:2014; CIMFR Certificate No. IN/CIMFR/TR21/P/2165
• Degree of Protection: EX d and IP66
• Surge Arrestor Protection: 10 kV
• Mounting System: Supplied with eye bolt for easy installation

• Weight: Approx. 6.8 kg
• Installation Dimensions: 3 mm tolerance
• Cable Entry: 1 hole with M20x1.5 threads; Temporary PVC plug provided
• Mains Terminal: 3-way terminal, suitable for max. 2.5 sq mm incoming cable

• Driver: 2 NOS S0DVEL-65-700-45W
• Surge Arrestor: SRPSQ-10KV-5KA-440V or SRPSEX-10KV-440V
• Glass with Ring: FPGL02-IIC
• Ordering Code: LI301911-A2
• Cable Gland (Sold Separately): FG001
