Product Description

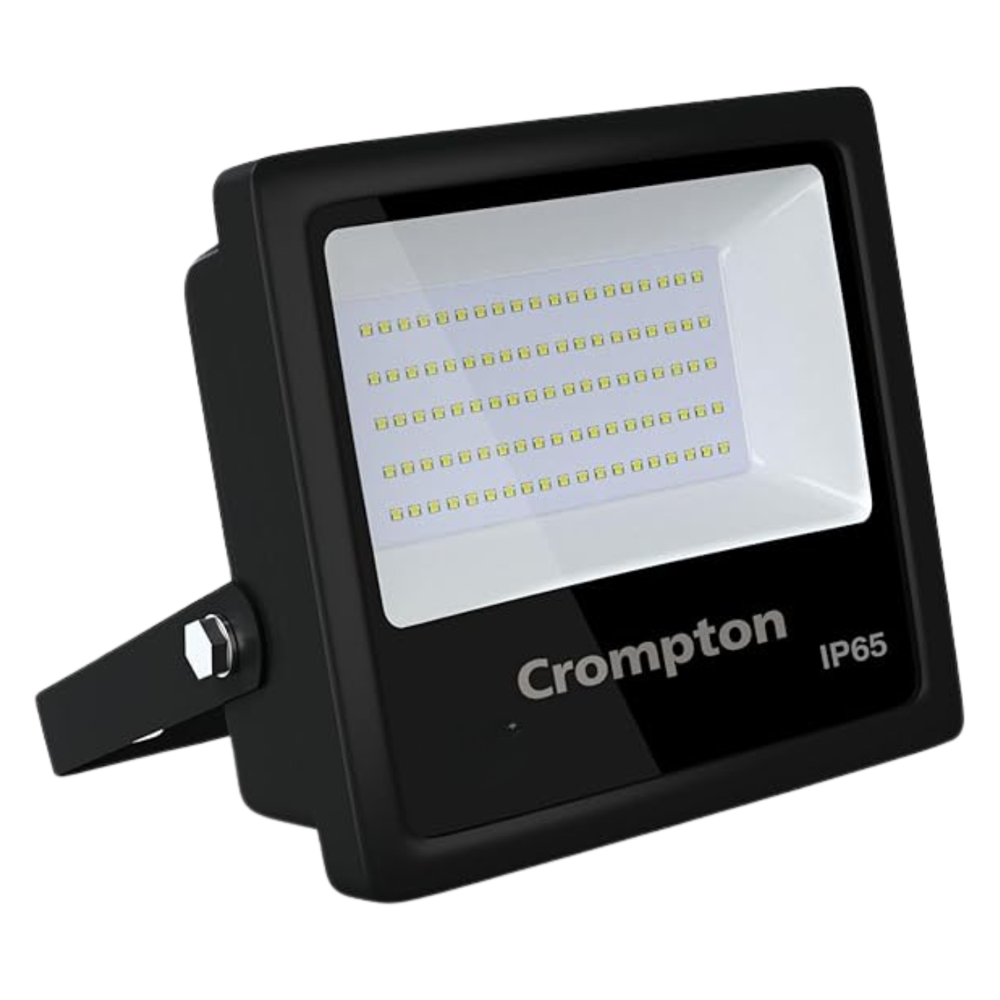

LED floodlight made up of pressure die cast aluminum housing with toughened glass and high power LEDs and secondary lenses with IP66 protection. System efficacy >110/120 LPW, 10KV SPD version to be ordered separately
High-Performance LED Flood Light LuminairesOverview:
These high-performance LED flood light luminaires are designed to replace traditional halogen fixtures (500W/1000W) in extreme outdoor conditions, offering superior lighting efficiency and durability.
Key Features:Robust Build:
- Made of pressure die-cast aluminum with a premium surface finish.
- Features excellent heat dissipation through a superior heat sink, ensuring a longer luminaire lifespan.
Impact Resistance:
- Toughened glass with 4mm thickness provides enhanced durability.
- Tested for 5 impacts of 2.0 Joules on all sides.
Lightweight Design:
- Reduces dead load on poles for easier installation.
- Comes with a cradle arrangement for both pole and surface mounting.
Electrical Specifications:
- Available Wattages: 50W / 100W
- Surge Protection: 4KV inbuilt
- Power Factor: > 0.95
- Electrical Class: 1
- Wide Input Voltage Range: 100300V AC
- Over-voltage shut down above 320V with auto-recovery capability.
Photometric Specifications:
- Efficacy: >100 lm/W 10%
- L70 Life Span: 50,000 hours
- CCT Options:
- 5665K 355K (ANSI)
- 3045K 175K (ANSI)
- CRI: >70
- Beam Angle: 120 (without lens)
Product Details: Item Code- TLF500231-M2CAT Reference no- TFS-521-50-57-NL-SL-NS-GL-NSGWeight - 1.4 kgCase Lot - 4 nosUpgrade to these advanced LED floodlights for efficient, durable, and reliable performance in challenging outdoor environments.
