100W HIGHBAY LIGHT-TIP-324-100-57-60D HL2-NS-LM-NSG Make Crompton

Product Description

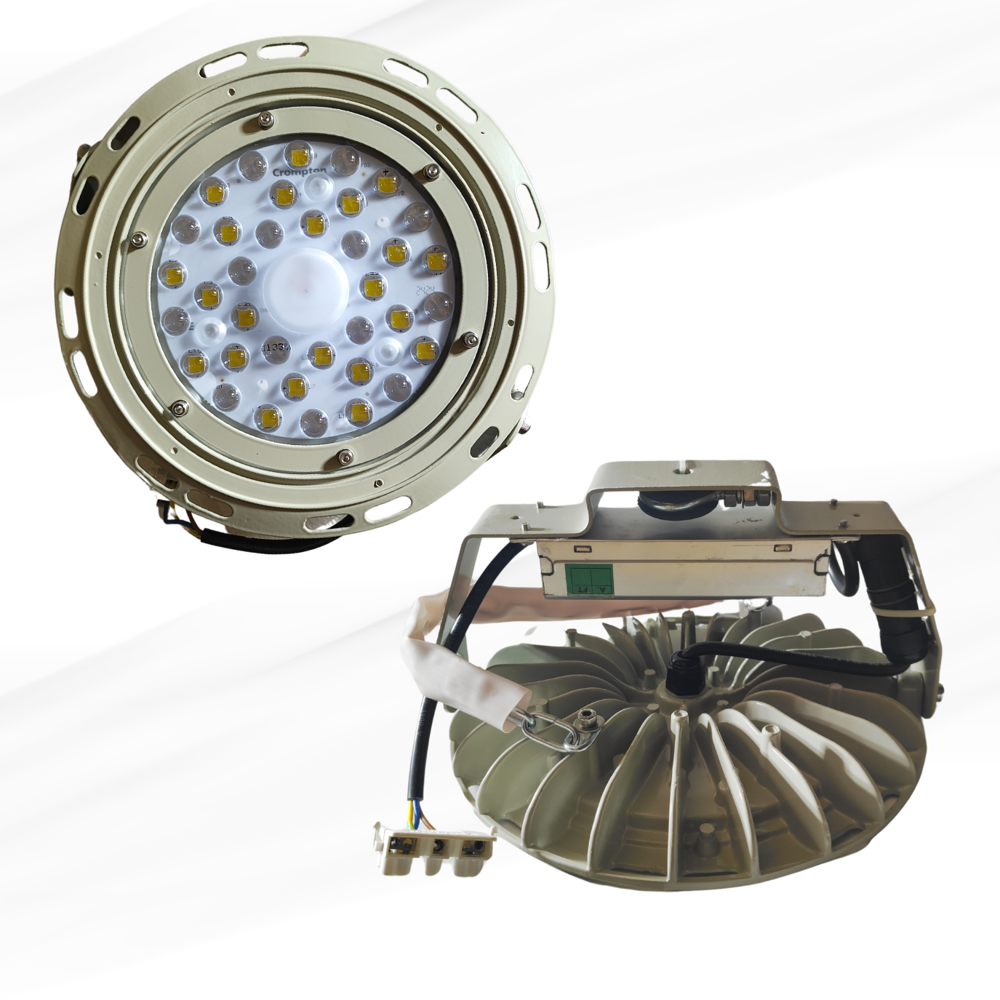

Integral LED High Bay Luminaire - TIP-324-100-57-60D-HL2-NS-LM-NSG
Crompton Greaves presents the Integral LED High Bay Luminaire, designed for high-performance industrial lighting applications. This luminaire is ideal for engineering industries and large spaces where the mounting height exceeds 6.0 meters. With a robust design and advanced features, it ensures reliable and efficient lighting for demanding environments.
Key Features:High Efficiency: Delivers efficacy of 120 LPW (Lumens Per Watt), ensuring energy-efficient operation.
Durable Construction: Housing made from pressure die-cast aluminum, powder-coated in Graphite Grey (RAL-7037), providing excellent durability and corrosion resistance.
IP66 Protection: Offers superior protection against dust and water ingress, making it suitable for harsh industrial environments.
High-Quality Optics: Equipped with an IP lens for optimal light distribution and minimal glare.
Inbuilt Surge Arrestor: Features a 5KV surge arrestor integrated into the driver, safeguarding against voltage spikes.
Easy Maintenance: Driver is replaceable, ensuring easy maintenance and reduced downtime.
Wide Voltage Range: Operates efficiently within a voltage range of 120V to 270V, making it suitable for varying power conditions.
Technical Specifications:Nominal Wattage: 100W
Color Temperature (CCT): 5700K (Daylight)
Color Rendering Index (CRI): 70 (Minimum)
Rated Voltage: 240V
Mains Current: 0.435A
Power Factor: > 0.95
Total Harmonic Distortion (THD): <10%
Weight: Approximately 2.36 kg
Applications:Industrial Warehouses
Manufacturing Facilities
Workshops
Sports Arenas
High Ceiling Commercial Spaces
Ordering Information:Product Code: TIP-324-100-57-60D-HL2-NS-LM-NSG
Ordering Code: TL1300422-M2
Spares and Accessories:Driver: 100W@700mA
Cover: SO-IPL-100-HB
Why Choose Crompton Greaves?Trusted Brand: Crompton Greaves is a renowned name in the electrical and lighting industry, known for its high-quality and reliable products.
Energy Savings: With high efficacy and low power consumption, this luminaire helps reduce energy costs.
Long Lifespan: Designed for durability and long-term performance, reducing the need for frequent replacements.
Note:The product design and specifications are subject to change as part of continuous improvement efforts.
All dimensions are in millimeters with a tolerance of 3mm unless otherwise specified.
For more details or to place an order, contact us today! Crompton Greaves LED High Bay Luminaires are the perfect lighting solution for your industrial and commercial needs.
