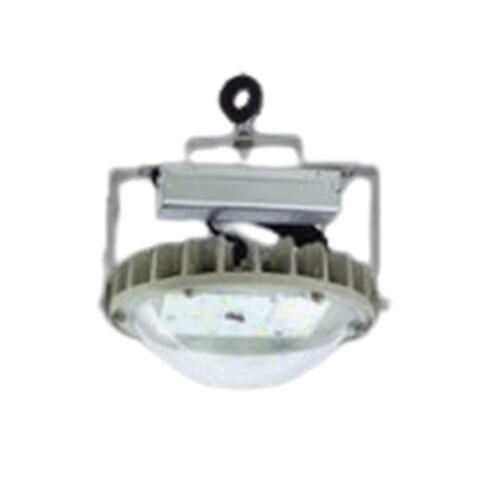

70W LED Well Glass Luminaire TIP-314-70-57-SL-CP-NSG Make Crompton

Product Description

The Crompton 70W LED Well Glass Luminaire (Model: TIP-314-70-57-SL-CP-NSG) is a high-performance industrial lighting solution, engineered to deliver efficiency and durability. Designed for challenging environments, this luminaire is perfect for industrial settings such as power plants, factories, and outdoor applications requiring reliable and robust lighting.

Built with a pressure die-cast aluminum housing and a clear polycarbonate cover, it offers superior durability and protection. The IP66-rated design ensures resistance to dust and water ingress, while the high luminous efficacy (120 lumens per watt) provides bright and uniform illumination for optimal visibility.

Key Features:

• High Efficiency: Luminous efficacy 120 lumens per watt at 5700K color temperature.
• Durable Design: Pressure die-cast aluminum housing with powder coating (RAL-7032).
• Reliable Protection: IP66-rated for resistance against dust and water.
• Integrated Surge Protection: Inbuilt 5KV surge arrestor for enhanced safety.
• Convenient Installation: Includes a cradle with an eye bolt for secure mounting.
• Maintenance-Friendly: Replaceable driver for prolonged usability.

Applications:
Ideal for industrial environments such as power plants, manufacturing units, and semi-outdoor applications.

Technical Specifications:

1. Electrical Parameters:

   • Rated Voltage: 240V
   • Frequency: 50Hz 3%
   • Operating Voltage Range: 120-270V
   • Power Consumption: 70W
   • Current: 0.310A
   • Power Factor: >0.95
   • Total Harmonic Distortion (THD): <10%

2. Optical Parameters:

   • Correlated Color Temperature (CCT): 5700K
   • Color Rendering Index (CRI): 70
   • Luminous Efficacy: 120 lumens/watt

3. Construction:

   • Housing: Pressure die-cast aluminum with powder-coated finish (RAL-7032)
   • Cover: Clear polycarbonate
   • Internal Wiring: PVC-coated multistrand copper wire

4. Protection and Safety:

   • Surge Arrestor: Inbuilt 5KV in driver
   • Ingress Protection: IP66

5. Installation Details:

   • Mounting: Cradle with an eye bolt for secure attachment
   • Maintenance: Easy driver replacement

Ordering Code: TLI300105-M2

Choose the Crompton 70W LED Well Glass Luminaire for reliable and efficient lighting in industrial and semi-outdoor environments!
