20 Watt Flameproof Tubelight Fitting EXTN1LT8-16-20 Make Crompton

About 20 Watt Flameproof Tubelight Fitting EXTN1LT8-16-20 Make Crompton

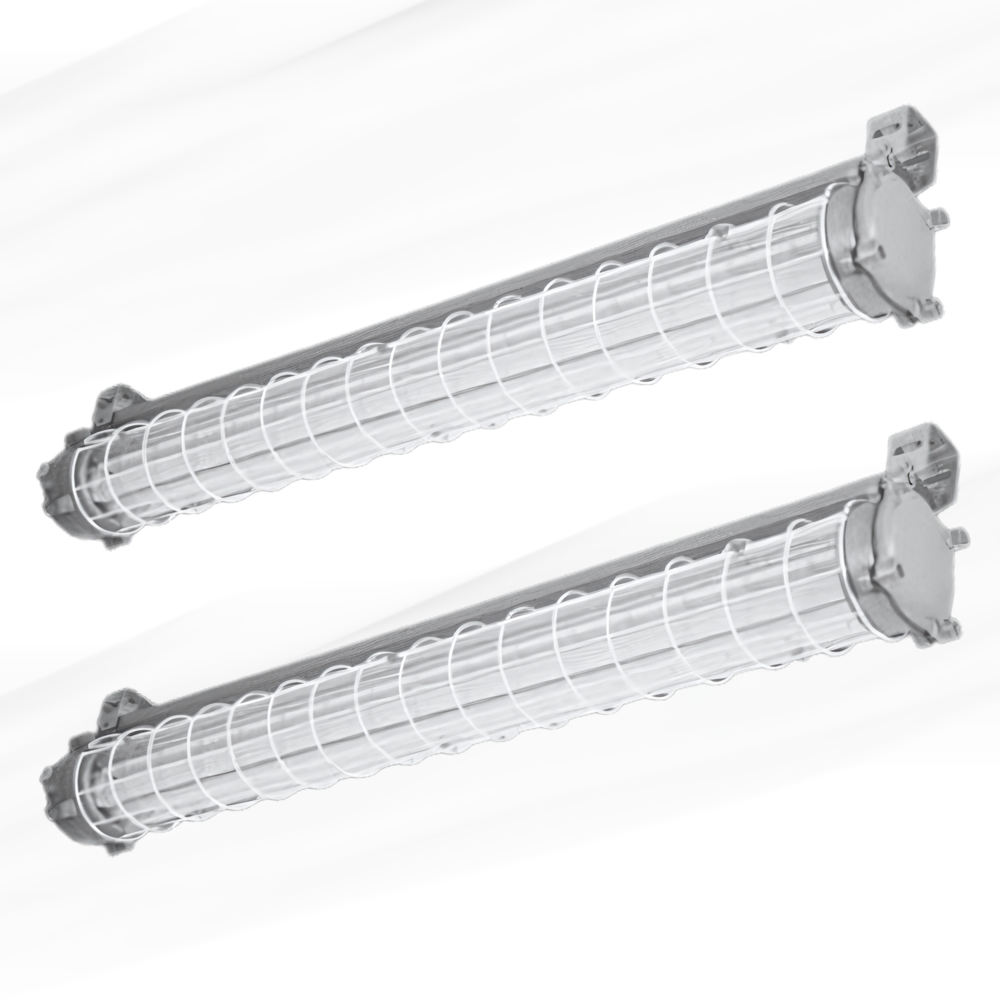

Flameproof LED Tubelight Luminaire (Model: EXTN1LT8 - 16/20/32/40, 4 Feet) - Crompton Greaves

Product Overview: Presenting the Crompton Greaves Flameproof LED Tubelight Luminaire, specially designed to provide reliable and efficient illumination in hazardous environments. Ideal for use in areas with gases/vapours classified under Group IIA & IIB and Zone 1 & 2, this luminaire ensures safety and performance.

Key Features:

Explosion Proof Design:

Conforming to IS/IEC 60079-0-2004 & IS/IEC 60079-1-2007 standards.

Ingress Protection:

Rated Ex d & IP65 for dust and water resistance.

Gas Group Compatibility:

Suitable for Group IIA & IIB gases/vapours.

Construction:

Housing: Cast Aluminium Alloy LM6 with Hammertone Grey finish.

Ring: Cast Aluminium Alloy LM6 in matching Hammertone finish.

Glass: Heat-resistant.

Gasket: Silicon.

Hardware: Zinc-plated, passivated MS internal parts & high tensile external steel.

Earthing: 1 internal & 2 external (M6x12mm).

Installation:

Cable Entry: 1 hole with M20x1.5 threading.

Special mounting brackets provided for easy installation.

Electrical Specifications:

Model Lamp Type Voltage (V) Current (A) Wattage (W) Weight (Kg)

EXTN1LT8 - 16/20 1 x LTT8-16/20 240 0.070 - 0.090 16W/20W 11.9

EXTN2LT8 - 16/20 2 x LTT8-16/20 240 0.140 - 0.170 32W/40W 11.9

Operating Voltage Range: 150V - 270V

Power Factor: 0.90

Frequency: 50 Hz

Certifications & Approvals:

CMRS Certificate No.: CIMFR/TC/S/1651 Dt: 03/03/2015

Approvals: CIMFR, BIS

Applications:

Oil & Gas Industries

Petrochemical Plants

Chemical Warehouses

Hazardous Industrial Zones

Why Choose Crompton Flameproof Luminaires?

High durability & reliability.

Certified safety for hazardous environments.

Easy maintenance & installation.

Energy-efficient and long-lasting performance.

Contact Now to Get the Best Price!
