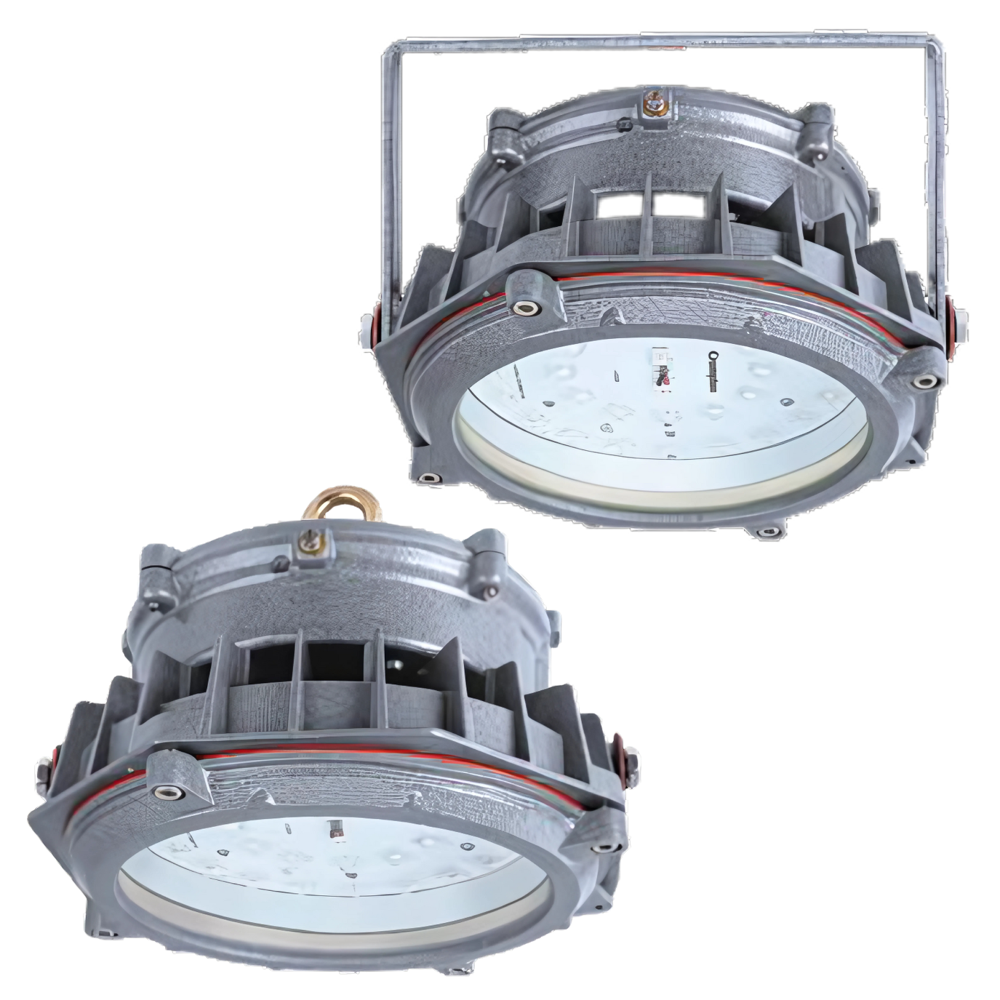

120W Flameproof Highbay FFL1315-120-CDL-60-HB-M Make Crompton

Product Description

1. Wattage: 120W
2. Luminous Efficacy: >100 lumens/watt
3. Color Temperature: 5700K (Cool Daylight)
4. Voltage Range: Operates at 240V (range: 120-277V)
5. Power Factor: >0.95
6. Total Harmonic Distortion (THD): <10%
7. Ingress Protection: IP66, suitable for harsh environments
8. Gas Group: Certified for hazardous zones IIA, IIB, and IIC
9. Surge Protection: 10KV

• Housing: Die-cast aluminum with Hammertone Graphite Grey finish
• Glass: Toughened, heat-resistant flat glass
• Hardware: Stainless Steel
• Internal Wiring: PVC-coated multistrand cable

• Conforms to IS/IEC 60079-1-2014 standards
• CIMFR Certificate No: IN/CIMFR/TR21/P/2165

• Cable Entry: 1 hole with M20x1.5 threads
• Mounting System: EYE Bolt provided for suspension
• Zone Classification: For Zone 1 & Zone 2 hazardous areas

• Dimensions: Installation dimensions with a tolerance of 3mm
• Approximate Weight: 6.8 kg
• Mains Terminal: Supports a maximum of 2.5 sq mm incoming cable

• Product Code: FFL1315-100-CDL/60-HB-M
• Spares: Driver (S0DVEL-65-700-45W), Surge Arrestor (SRPSEX-10KV-440V), and Glass with Ring (FPGL02-IIC)
• Additional Accessories: Cable gland (Cat ref - FG001)

• Designed for hazardous industrial environments such as oil refineries, chemical plants, and gas stations.

• Delivers high-lumen output with energy efficiency for brighter illumination
• Robust design ensures durability in extreme conditions
• Easy installation with flexible mounting options

This product is ideal for providing reliable, bright, and safe lighting solutions in hazardous areas while ensuring compliance with safety standards.
