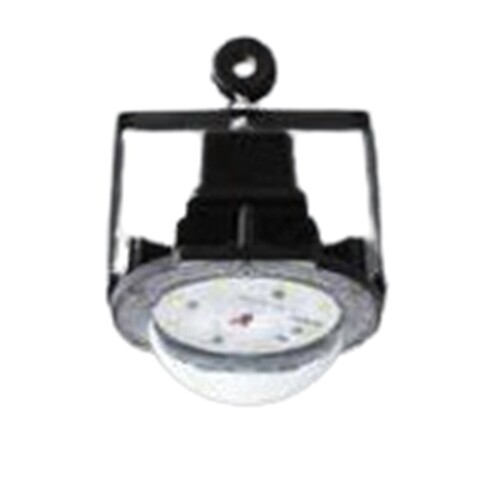

Crompton 40W LED Well Glass Luminaire TIP-312-40-57-SL-CP-NBK Make Crompton

About Crompton 40W LED Well Glass Luminaire TIP-312-40-57-SL-CP-NBK Make Crompton

Upgrade your industrial and outdoor lighting with Crompton's 40W LED Well Glass Luminaire (CIP-312-40-57-SL-CP-NBK Series). Engineered for use in cement plants, power plants, steel plants, material handling areas, and semi-outdoor environments, this luminaire combines high efficiency, robust build quality, and superior protection features.

Key Specifications:

• Nominal Wattage: 40W
• Color Temperature (CCT): 5700 ANSI
• CRI (Color Rendering Index): 70
• Voltage: 240V AC
• Frequency: 50 Hz 3%
• Operating Voltage Range: 120-270V
• Current (A) @ 240V: 0.175
• Power Factor (P.F.): >0.95
• Luminous Efficacy: >120 Lumens/Watt
• Weight: Approx. 0.735 kg

Material Specifications:

• Housing: Pressure die-cast aluminum with matt black powder coating
• Bowl: Clear polycarbonate cover
• Internal Wiring: PVC multistrand copper wire
• Cable: 2-core PVC cable
• Earthing: Suitable for 14 SWG earthing wire
• Surge Protection: Inbuilt 4KV

Electrical Parameters:

• THD: <10%
• Rated System Wattage and Current Tolerance: As per IS 16104: 2012

Protection & Installation:

• Ingress Protection (IP): IP66
• Mounting System: Cradle with eye bolt for secure installation
• Maintenance: Replaceable driver for ease of maintenance

Ordering Information:

• Product Code: CLI300401-A2
• Spares Ordering Reference:
  • Driver: S0414033

Why Choose Crompton 40W LED Well Glass Luminaire?
Designed for industrial reliability, it offers exceptional lighting performance, durability, and protection in harsh conditions. Contact us to know more or place your order today!
