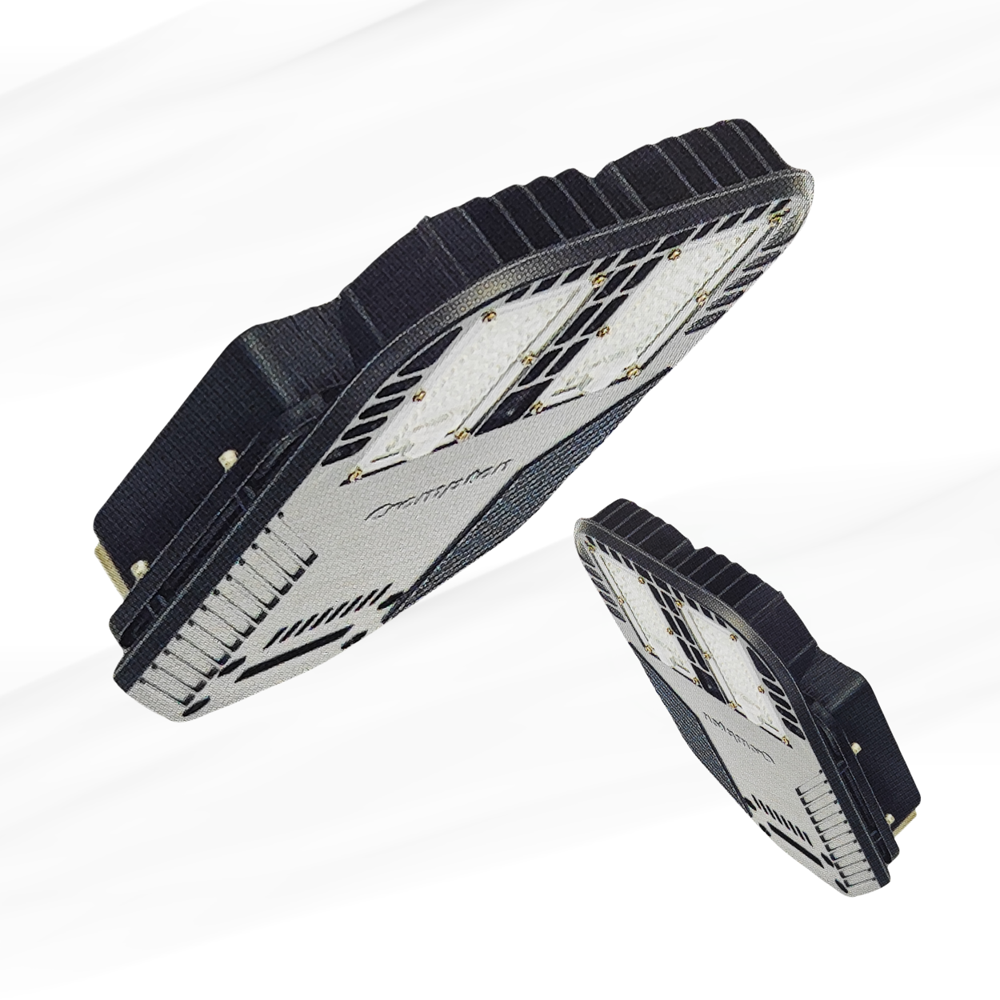

90W LED STREET LIGHT TRP-425-90-57-HL2-LM-NBK MAKE CROMPTON

About 90W LED STREET LIGHT TRP-425-90-57-HL2-LM-NBK MAKE CROMPTON

The 90W LED Street Light (Model: TRP-425-90-57-HL2-LM-NBK) is a robust and energy-efficient outdoor lighting solution designed for applications such as access roads, traffic routes, and public spaces. With its high-performance specifications and durable construction, this luminaire ensures optimal lighting and reliability in various environmental conditions.

• Model Number: TRP-425-90-57-HL2-LM-NBK
• Ordering Code: TLR400270-E4
• Nominal Wattage: 90W
• Efficacy: >120 LPW (Lumens per Watt)
• Color Temperature (CCT): 5700K ANSI (Cool White)
• Color Rendering Index (CRI): 70
• Rated Voltage: 240V
• Operating Voltage Range: 120V 270V~
• Frequency: 50 Hz 3
• Current @ 240V: 0.395A
• Power Factor (P.F.):  0.95
• Total Harmonic Distortion (THD): < 10%

• Housing: Die-cast Aluminum, Powder Coated in Matt Black for enhanced durability and corrosion resistance.
• Lens Module: High-impact Polycarbonate for excellent optical performance and protection.
• Internal Wiring: PVC Coated Multistrand Wire for safe and reliable electrical connections.
• Cable: 3-Core PVC Coated Multistrand Cable for external connections.

• Ingress Protection Rating: IP66, ensuring complete protection against dust and water ingress.
• Surge Protection:
  • 4KV Inbuilt Surge Protection in Driver.
  • 10KV External Surge Protection inside the housing for added safety against voltage spikes.

• Approximate Weight: 1.80 kg
• Mounting Compatibility: Suitable for mounting on poles with an outer diameter (O.D.) of 35 50 mm.
• Cable Entry: Through the mounting pipe, ensuring a secure and neat installation.

The luminaire is designed for quick and secure installation on standard street lighting poles, offering reliable performance with minimal maintenance.

1. Driver: 45W @ 700mA (Part Number: S0DVCTL-45W-700).
2. Surge Arrestor: 10KV, 440V.

This 90W LED Street Light is a high-performance lighting solution ideal for urban and rural outdoor lighting applications. Its durable design, energy efficiency, and superior optical performance make it an excellent choice for a wide range of outdoor lighting needs.
