35w Crompton Led well glass light EIP-315-35-57-HL2-CP-NSG With 2 Years Warranty

Product Description

Flameproof fixtures are designed to ensure that internal ignition within a flammable atmosphere

will not transmit outside the protective enclosure. Cromptons flameproof luminaires are ideal for

Industrial applications. CIMFR - BIS - PESO Certified. Recommended for Gas Group IIC, Zone

1 and 2. Temperature Class T6

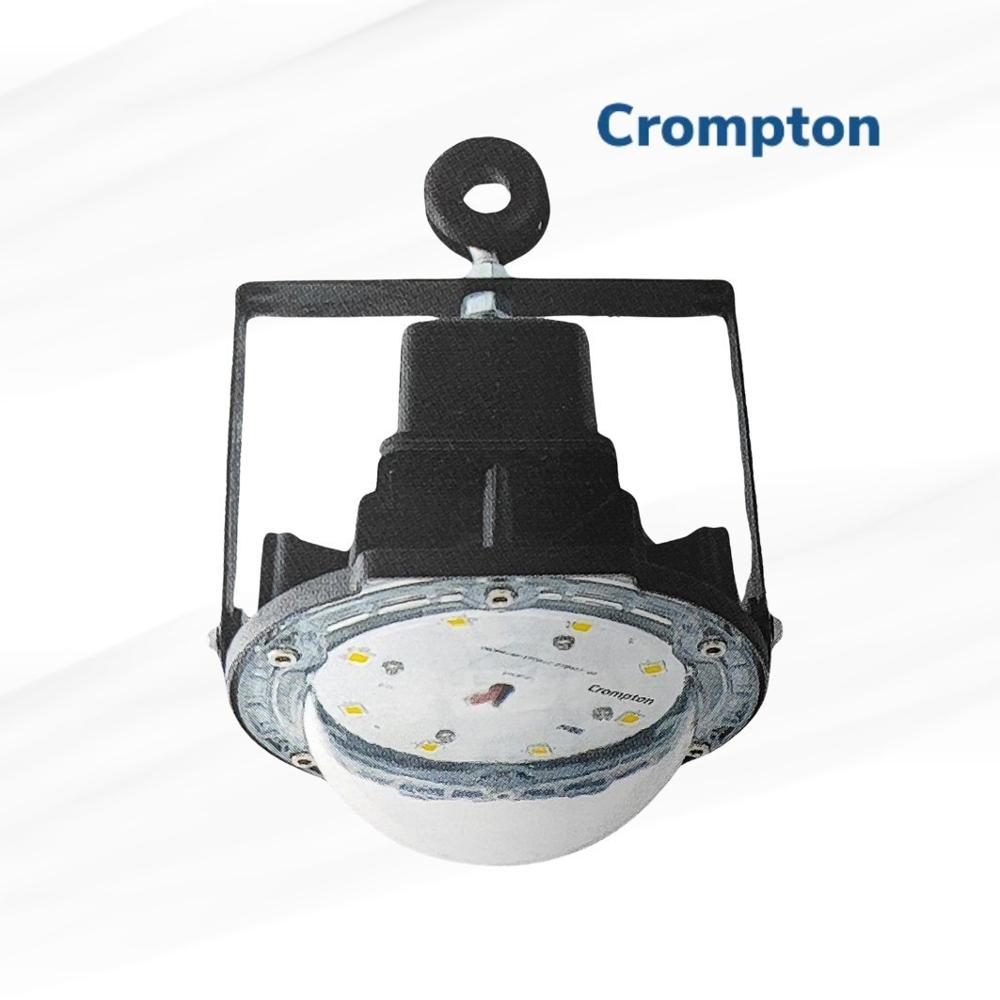

Crompton 35W LED Well Glass Light (Model: EIP-315-35-57-HL2-CP-NSG)

PERSEUS Series | High-Efficiency Industrial Lighting Solution | IP66 | 2-Year Warranty

 Key Features:

• Power Consumption: 35W

• Color Temperature (CCT): 5700K (Cool Daylight)

• Luminous Efficacy: Up to 150 Lumens/Watt

• Total Lumens: Approx. 4,200 5,250 Lumens

• LED Life Span: 50,000 Hours (L70)

• Ingress Protection: IP66 (Dustproof & Waterproof)

• Impact Resistance: IK10 (Vandal Proof 20 Joule Impact)

• Surge Protection: 5KV Inbuilt + Optional 10KV External SPD

• Power Factor: >0.95

• THD: <10%

• Operating Voltage: 120V 270V AC

• Operating Temperature: -10C to +45C

• Mounting Type: Heavy Duty Eyebolt

• Body Material: Pressure Die-Cast Aluminium

• Cover Material: UV-Stabilized Clear Polycarbonate (Also available in diffused)

• Electrical Safety: Class I, BIS Approved Driver (IS 15885 compliant)

• Warranty: 2 Years

 Applications:

• Cement Plants

• Steel Plants

• Power Plants

• Jute Industries

• Conveyor Belts

• Warehouses

• Industrial Sheds

• Outdoor Work Areas

 Mechanical & Structural Details:

• High-quality pressure die-cast aluminum housing for durability and corrosion resistance

• Laser-printed Crompton branding for traceability throughout product life

• 3G Vibration Compliance (IEC 60068-2-6: 2007) withstands high-vibration environments

• Heavy-duty eyebolt mounting for easy installation in industrial setups

 Optical & Photometric Specs:

• CRI: >70 for clear visibility and accurate color rendering

• CCT Options: 5700K (standard) or 3000K (on request)

• Lens Options: Clear or diffused PC cover with UV protection

• Delivers uniform and glare-free illumination with optimized beam spread

 Electrical Protections:

• Potted driver enclosed in an IP66 casing

• High-voltage cutoff with auto recovery

• Withstands up to 440V for 8 hours (ideal for voltage fluctuation-prone areas)

• Low maintenance and long operational life for cost-effective ownership

 Ordering & Packaging:

• Model Code: EIP-315-35-57-HL2-CP-NSG

• Outer Case Lot: 8 Units

• Manufacturer: Crompton Greaves Consumer Electricals Ltd.

For industrial lighting that delivers unmatched reliability, efficiency, and rugged design choose Cromptons PERSEUS 35W LED Well Glass.
