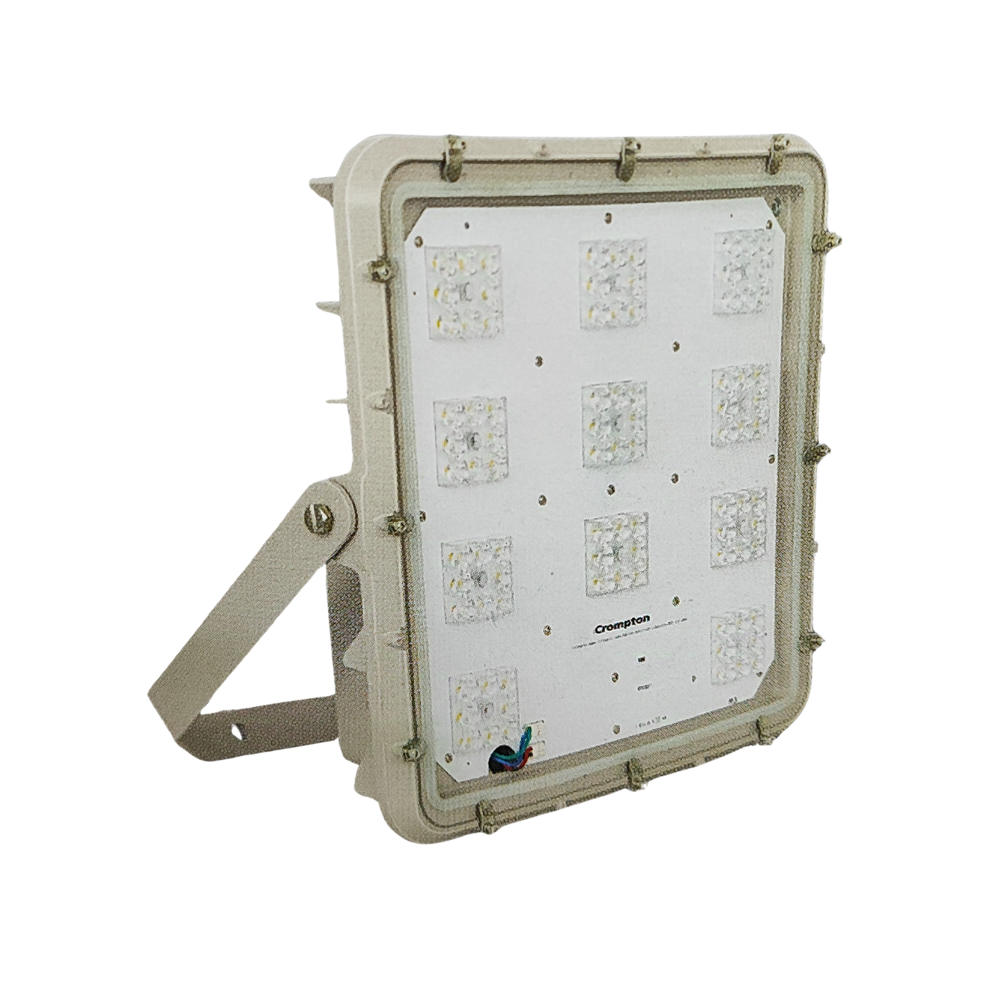

250W LED Flood Light CFS-506-250-57-60D-SL-GL-NSG Make Crompton

Product Description

The Crompton Greaves 250W LED Floodlight (CFS-506-250-57-60D-SL-GL-NSG) is a high-performance lighting solution designed for outdoor applications like area lighting, faade lighting, monument lighting, and yard lighting. This luminaire is built with robust materials and provides excellent energy efficiency, making it ideal for industrial and commercial use.

• Model: CFS-506-250-57-60D-SL-GL-NSG
• Type: LED Floodlight
• Efficacy: 110 LPW
• Housing: Elegantly designed, highly efficient pressure die-cast (PDC) aluminium housing with powder-coated finish.
• Finish Color: Grey (RAL-7032)
• Glass: Heat-resistant toughened glass.
• Fins: Provided on housing for efficient heat dissipation.

• Rated Voltage: 240V AC
• Operating Voltage Range: 120 - 270V AC
• Frequency: 50 Hz 3%
• Nominal Wattage: 250W
• Current (A) @ 240V: 1.10 A
• Power Factor (P.F.): > 0.95
• Total Harmonic Distortion (THD): < 10%

• Nominal Wattage (W): 250W
• Color Temperature (CCT): 5700K
• Color Rendering Index (CRI): 70

• Material:
  • Housing: Die-cast aluminium, powder-coated in Grey RAL-7032
  • Driver Housing: Die-cast aluminium, powder-coated in Grey RAL-7032
  • Glass: Heat-resistant toughened glass
• Dimensions: Tolerances of 3 mm unless otherwise specified.
• Weight: Approx. 7.70 kg

• Internal Wiring: PVC-coated multistrand wire.
• Mains Terminal: 1 no. 3-way terminal block rated for 10A, suitable for terminating up to 2.5 sq. mm incoming cable.
• Earthing: Suitable for 14 SWG earthing wire.

• Ingress Protection (IP Rating): IP66 Dust-tight and protected against powerful water jets.
• Surge Protection:
  • Internal Surge Arrestor: 4 kV inbuilt in the driver.
  • External Surge Arrestor: 10 kV external, inside housing.

• Cable Entry: Through cable gland.
• Mounting System:
  • Cradle design with:
    • 2 slots (14 mm x 25 mm).
    • 1 hole (20 mm) for mounting.
• Maintenance:
  • Control gear cover is removable for easy maintenance of internal components.

• Product Description: CFS-506-250-57-60D-SL-GL-NSG
• Ordering Code: CLF500706-M2

• Driver: 240W @ 700mA
• Glass: S0906066-B
• Surge Arrestor: 10 kV, 440V

• Area Lighting
• Facade Lighting
• Monument Lighting
• Yard Lighting

• High Efficiency: Efficacy of 110 lumens per watt.
• Robust Build: Die-cast aluminium housing with a durable powder-coated finish for long-term outdoor use.
• Reliable Performance: Designed to withstand harsh environments with IP66 protection and surge arrestors (internal and external).
• Easy Maintenance: Modular design with removable control gear cover for quick access to internal components.

This Crompton Greaves 250W LED Floodlight is a reliable, energy-efficient, and durable solution for all outdoor lighting requirements.
