80w Canopy Light Crompton For Petrol Pump CIR-328-80-57-SL-DP-NWH

Product Description

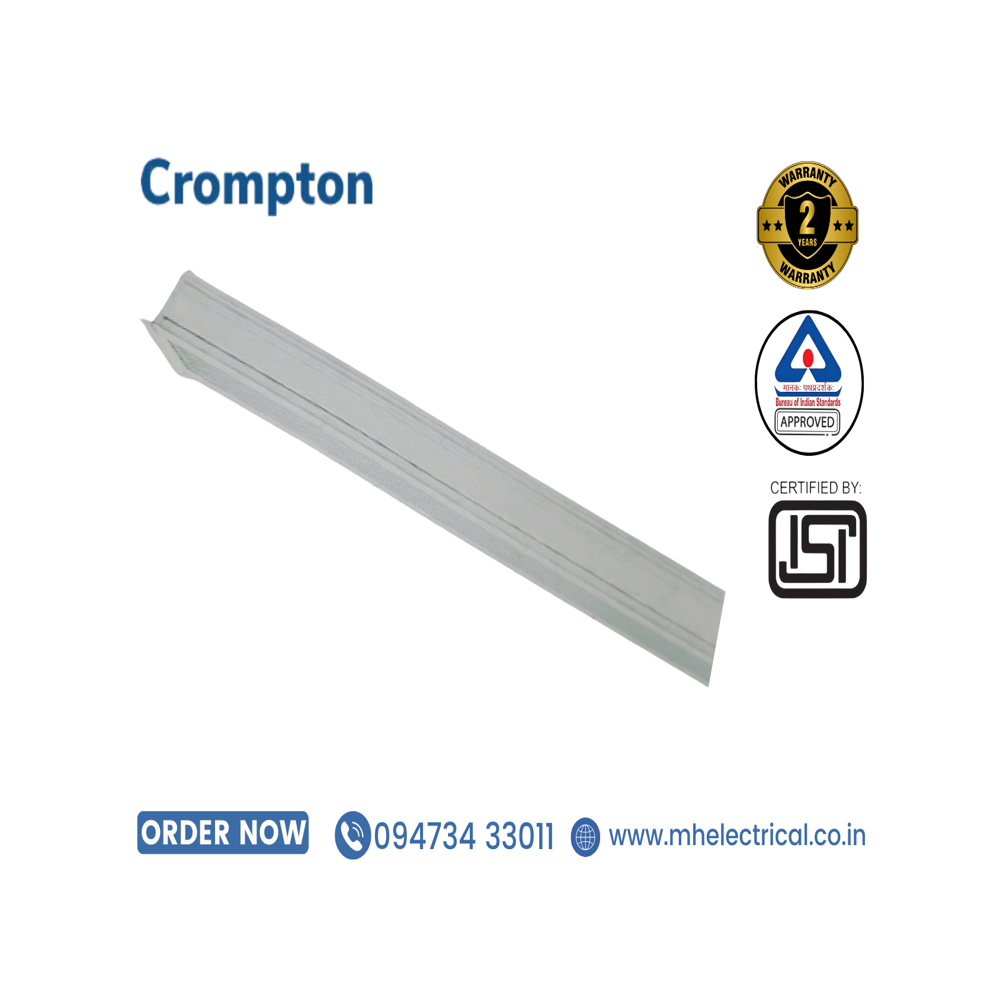

VISUALINE - Cromptons Linear Under-Canopy Light (Model: CIR-328-80-57-SL-DP-NWH)

Product Overview:
The VISUALINE canopy light by Crompton is a premium lighting solution designed to redefine traditional outdoor lighting. Its modern linear design is ideal for replacing outdated square canopy lights, providing exceptional brightness and energy efficiency. This canopy light is engineered for outdoor environments, making it the perfect choice for petrol stations, fuel pumps, and other high-ceiling areas requiring reliable illumination.

Key Features:

• Modern Canopy Light Design: A sleek linear structure elevates the aesthetics of petrol stations.
• High Efficiency: This canopy light delivers >100 LPW efficacy, ensuring optimal energy savings.
• Durable Build: Robust aluminum extrusion housing with a white powder-coated finish, crafted for canopy installations.
• Ingress Protection: IP66-rated, making it a weatherproof canopy light for all conditions.
• Enhanced Safety: Includes optional 10KV surge protection to protect the canopy light from electrical surges.

Technical Specifications:

• Nominal Wattage: 80W
• CCT: 5700K
• CRI: ANSI 70
• Voltage Range: Rated Voltage 240V; Operating Voltage Range 120-270V
• Frequency: 50Hz 3
• Power Factor (P.F.): >0.95
• Current: 0.35A @ 240V
• Ingress Protection: IP66
• Weight: Approx. 4.5 kg
• Efficacy: >100 LPW
• I THD: <10%

Material Specifications:

• Housing: Aluminum extrusion, ideal for under-canopy light applications, with a white powder-coated finish.
• Diffuser: Polycarbonate diffused for smooth illumination across the canopy area.
• Internal Wiring: 0.5 sq mm PVC wiring for dependable performance in canopy lights.
• Cable: 3 Core 1 sq mm cable tailored for canopy installation.
• Surge Arrestor: 1 No., 10KV, 440V for protecting the canopy light.

Electrical Parameters:

• Rated Voltage: 240V
• Frequency: 50Hz 3
• Current: 0.35A @ 240V
• Power Factor: >0.95
• I THD: <10%

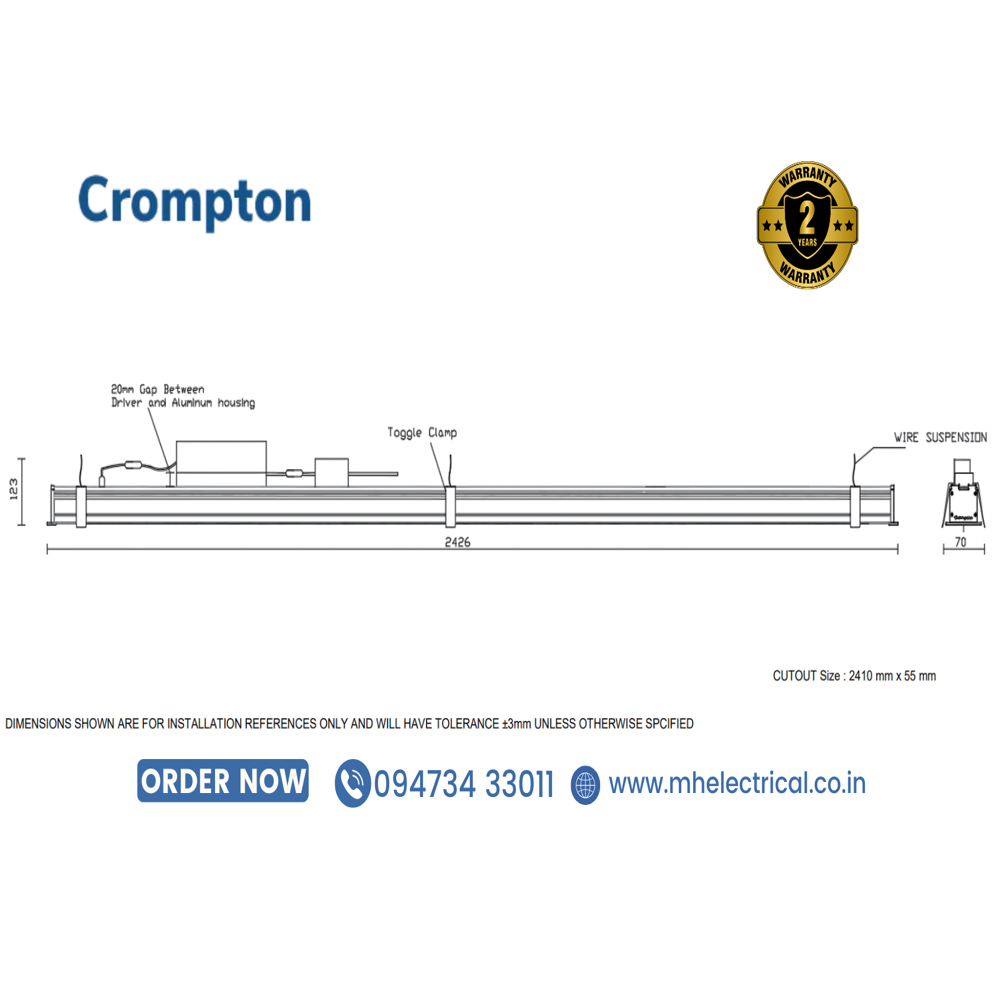

Installation Details:

• Cable Entry: PG7 Brass Cable Gland ensures easy wiring for this canopy light.
• Mounting System: 3-wire suspension and toggle system, designed for secure and efficient installation in canopy lighting setups.

Benefits of the Canopy Light:

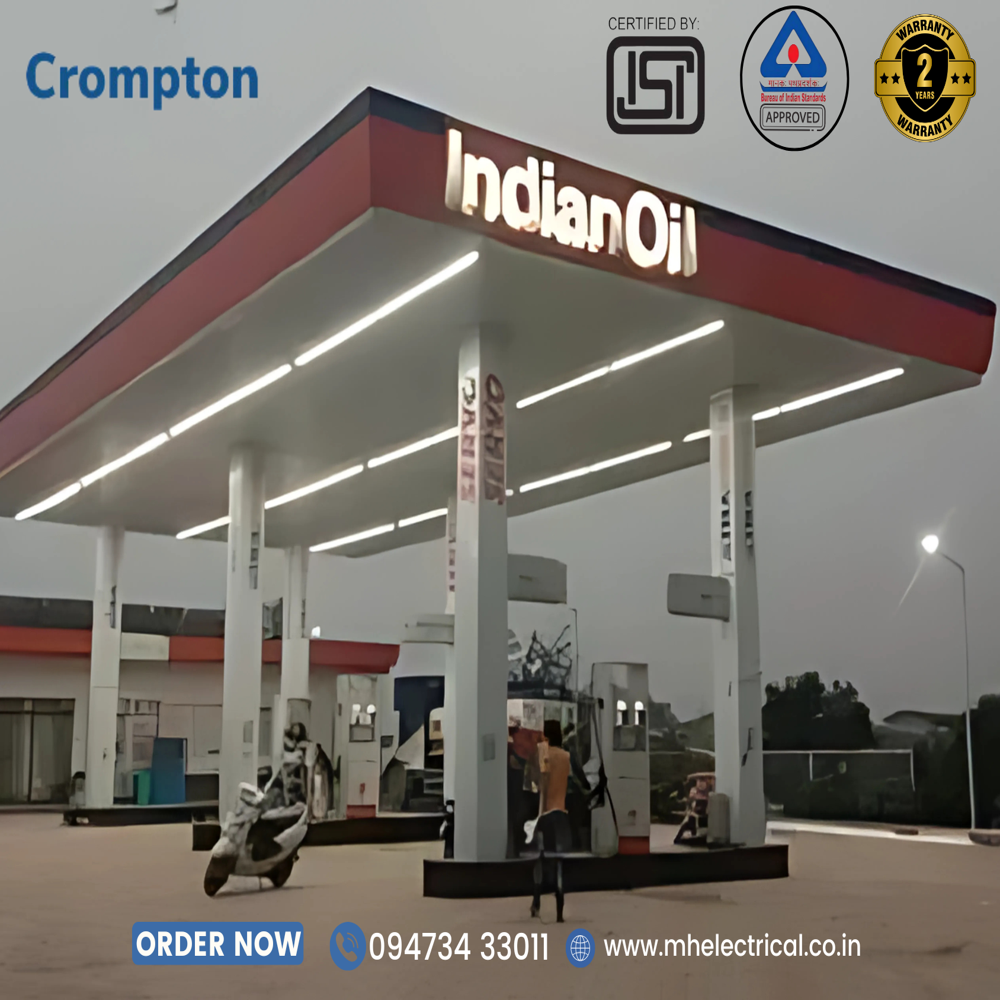

1. Excellent illumination tailored for petrol station canopies.
2. Long-lasting LEDs with an average life of L70B50: 50,000 hours.
3. Environmentally friendly as this canopy light contains no Mercury.
4. Safe and reliable with no harmful UV or IR emissions.
5. Operating temperature range from -10C to +45C.
6. Instant-on feature ensures immediate lighting.
7. Designed to replace traditional square canopy lights for better efficiency and aesthetics.

Product Ordering Details:

• Description: CIR-328-80-57-SL-DP-NWH
• Code: CLI301800-E4

Spares Ordering Reference:

• Driver: EDC-075S105SV-3007
• Surge Arrestor: SRPSQ-10KV-5KA-440V

Applications:
This canopy light is specifically designed for outdoor areas like petrol stations, ensuring durability, efficiency, and a modern look. Its ability to replace traditional canopy lights makes it a top choice for fuel stations and similar setups.
