150W LED HIGHBAY TIP-329-150-57-60D-HL2-NS-LM-NSG Make Crompton

About 150W LED HIGHBAY TIP-329-150-57-60D-HL2-NS-LM-NSG Make Crompton

Upgrade your industrial and commercial lighting with DELPHINUS IP66 LED High Bay Lights, designed for high-ceiling environments such as warehouses, factories, large-scale industries, and retail spaces. These energy-efficient lighting solutions provide superior brightness, low power consumption, and long-lasting durability.

Electrical Specifications:

• Wattage: 150W
• Power Factor (PF): >0.95
• Total Harmonic Distortion (THD): <10%
• Input Voltage Range: 120V 270V AC
• High Voltage Protection: Withstands 440V for 8 hours with auto-recovery feature
• Surge Protection: 5KV inbuilt SPD
• Electrical Safety Compliance: BIS-approved IP66 potted driver (As per IS 15885)

Optical Specifications:

• Luminous Efficacy: 120 LM/W, 130 LM/W, 150 LM/W
• LED Life Span: 50,000 Hours (L70)
• Beam Angle: 60 (High-quality polycarbonate lens for uniform light distribution)
• Color Temperature (CCT): 5700K / 3000K
• Color Rendering Index (CRI): >70

Mechanical Specifications:

• Material: Pressure die-cast aluminum alloy housing for better heat dissipation
• Impact Resistance: 5.0 Joules impact protection (Equivalent to a 1.7kg mass dropped from 300mm)
• Mounting Type: Heavy-duty eyebolt for secure installation
• Safety Features: Additional safety chain for extra precaution
• Lens Type: UV-stabilized, non-yellowing polycarbonate IP lens
• Surface Finish: Superior finish for long-lasting durability

Environmental Conditions:

• Operating Temperature: -10C to 45C
• Ingress Protection: IP66-rated (Dustproof & Waterproof)
• Application Areas: Warehouses, Factories, Industrial Facilities, Large Retail Spaces, and more

Compliance & Certifications:

• BIS Certified
• Electrical Safety Standard: IS 15885

The DELPHINUS 150W LED High Bay Light is engineered for high efficiency, long life, and superior durability, making it the perfect choice for industrial and commercial lighting applications.

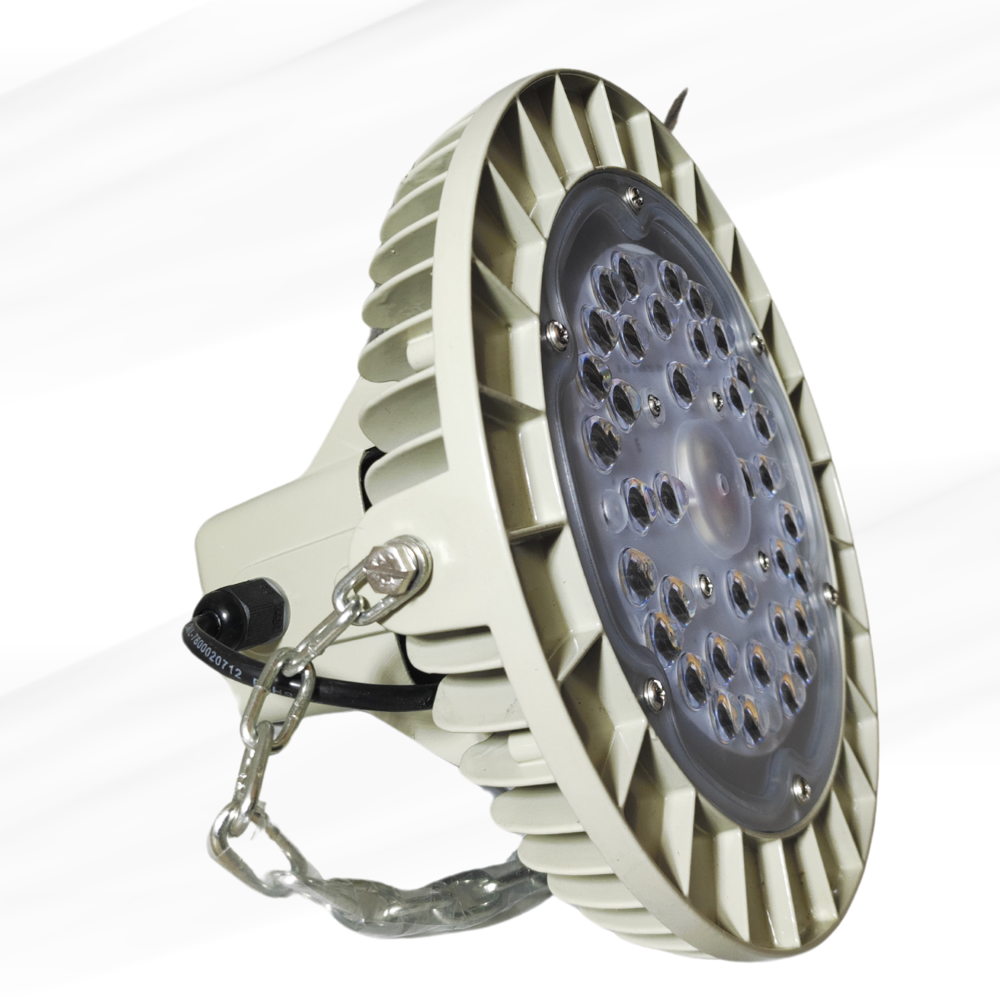

Round high bay in PDC housing suitable for industrial application. The luminaire has efficacy of 110 lm/w. It has 4KV inbuilt SPD & ingress protection of IP66 with additional safety chain
