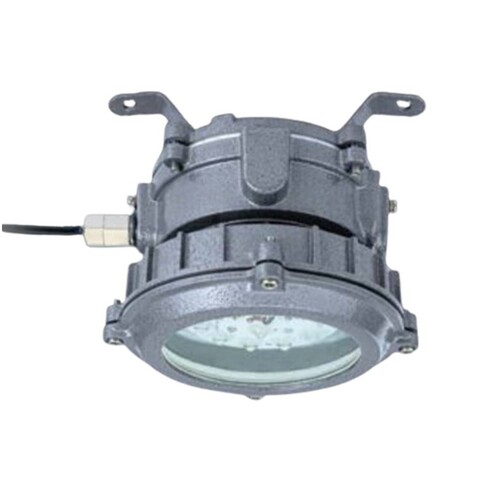

Crompton 40 Watt Flameproof LED Well Glass Light CIMFT-PESO-BIS Certified FWL-1318-40-CDL-M

About Crompton 40 Watt Flameproof LED Well Glass Light CIMFT-PESO-BIS Certified FWL-1318-40-CDL-M

1. Wattage: 40W
2. Luminous Efficacy: >100 lumens/watt
3. Color Temperature: 5700K (Cool Daylight)
4. Voltage Range: Operates at 240V (range: 140-270V)
5. Power Factor: >0.95
6. Total Harmonic Distortion (THD): <10%
7. Ingress Protection: IP66, suitable for harsh environments
8. Gas Group: Certified for hazardous zones IIA, IIB, and IIC
9. Surge Protection: 4KV inbuilt; 10KV external inside housing

• Housing: Die-cast aluminum with powder coating (matt finish)
• Glass: Toughened, heat-resistant flat glass
• Hardware: Stainless Steel
• Internal Wiring: PVC-coated multistrand cable

• Conforms to IS/IEC 60079-1-2014 standards
• CIMFR Certificate No: IN/CIMFR/TR22/P/1487

• Cable Entry: 1 hole with M20x1.5 threads
• Mounting System: Includes bracket for surface mounting
• Zone Classification: For Zone 1 & Zone 2 hazardous areas

• Dimensions: Installation dimensions with a tolerance of 3mm
• Approximate Weight: 3 kg
• Mains Terminal: Supports a maximum of 6 sq mm incoming cable

• Product Code: FWL1318-40-CDL-M
• Spares: Driver (S0DVEL-45W-700) and Glass with Ring (GL-FWL1318-IIC)
• Additional Accessories: Cable gland (Cat ref - FG001)

• Suitable for hazardous industrial environments such as oil refineries, chemical plants, and gas stations.

• Energy-efficient and long-lasting LED technology
• Robust construction for reliable operation in hazardous zones
• Easy to install and maintain

This product is designed to ensure safety and performance in challenging industrial conditions.
